With the Injector-matic Injector Calculator, you can estimate the fuel injector flow rate and fuel pump capacity required to achieve your desired power output. The calculator also displays suitable fuel injectors within the calculated flow range. You can also search for injectors based on their maximum flow rate.
Fill in the fields below based on your engine specifications. Fuel pressure and boost pressure are optional parameters, with default values of 3 bar and 1.5 bar, respectively.
Choosing the Right Fuel Injectors
There are many factors to consider when choosing the right fuel injectors for your vehicle. These include the vehicle and its engine, intended use, fuel type, available space, electrical connectors, and many other details.
Let's take a closer look at some of these factors from our perspective.
Injector Flow Rate and Power Output
One of the most important factors when selecting fuel injectors is their flow rate. In modified or race engines, the desired power output often determines the minimum required injector flow capacity.
Injector flow rate refers to the maximum amount of fuel an injector can deliver when operating at 100% duty cycle. Flow rates are typically expressed in cubic centimeters per minute (cc/min) or pounds per hour (lb/hr). For example, a 1000cc injector is capable of delivering 1000 cubic centimeters of fuel per minute when fully open. However, in normal engine operation, injectors should not be operated continuously at 100% duty cycle.
Ethanol-based fuels have a lower energy content than gasoline, meaning approximately 30% more fuel is required to produce the same amount of power.
Modern aftermarket ECUs and reprogrammed factory ECUs allow much greater flexibility when choosing fuel injectors.
As a general rule, we recommend selecting injectors with enough flow capacity to achieve your power goals without exceeding an 80% duty cycle.
Injector Data and Engine Tuning
The availability of injector characterization data and your engine tuner's preferences can also play a significant role in choosing the right injectors.
Many tuners have their own preferences and opinions regarding different injector brands and models. Some may even refuse to tune your engine management system if you've selected injectors they don't recommend.
This is especially important when building a setup around a factory ECU. Your tuner may already have base maps or calibration files developed for specific injectors, potentially saving you both time and money if you choose the right components from the beginning.
We therefore recommend finding a tuner for your setup early in the build process and discussing your injector options with them before making a purchase.

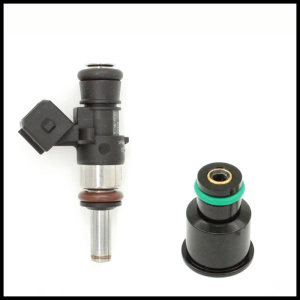

Injector Physical DimensionsFuel injectors come in a wide variety of sizes and designs. We use three common size categories: 34 mm - Short Injector 49 mm - Medium Injector 61 mm - Long Injector These dimensions are measured from the bottom of the upper O-ring to the top of the lower O-ring. |
|
