500 Amp magnetic latching (bi-stable solenoid), BLUE SEA 7703
Control Circuit Connection: Tinned wires
Nominal Voltage: 24V DC
Coil Function: Bi-Stable
Mounting: #10
Amperage Operating Current continuous: 0A
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 30 sec: 1450A DC
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Cable Size to Meet Ratings: 2x (4/0)
Stud Material: Tinned Copper
Switching Cycles: 100000
Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
Terminal Stud Length: 0.875in (22.23 mm)
Terminal Stud Size: 3/8" - 16 (M10)

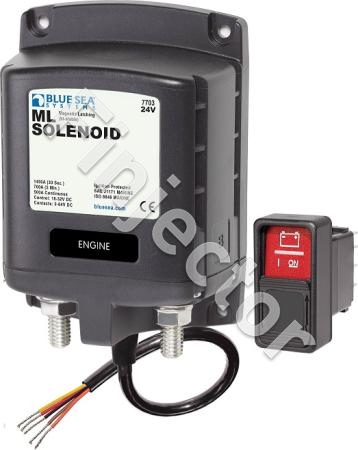

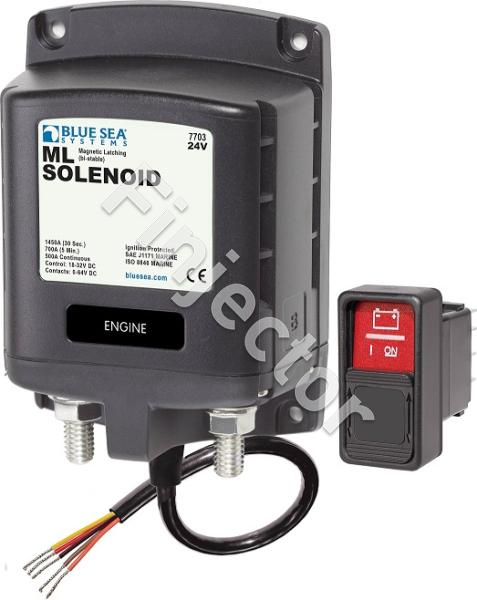

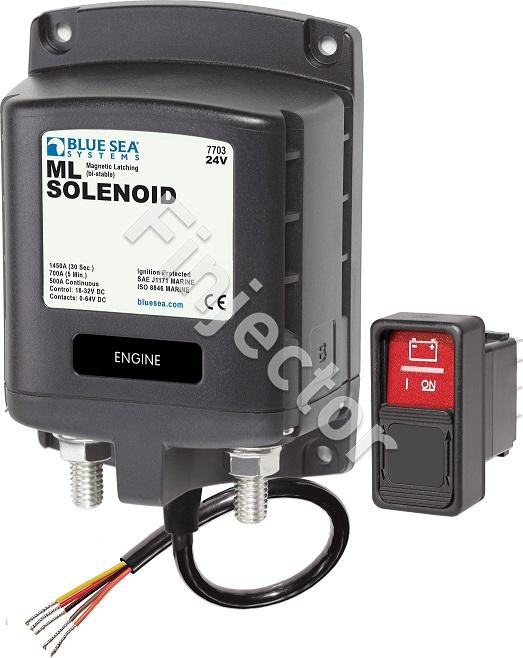

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.
Includes ML-Series Remote Control Contura Switch 2145.
500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine.
Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch.
Silver alloy contacts provides high reliability for switching live loads.
3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance.
7/8" (22mm) stud length accepts multiple cable terminals.
Label recesses for circuit identification.
