13933152 |
In our own stock 9 pc(s)
Orders received before 10 AM (our local time) will mainly be shipped the same working day.

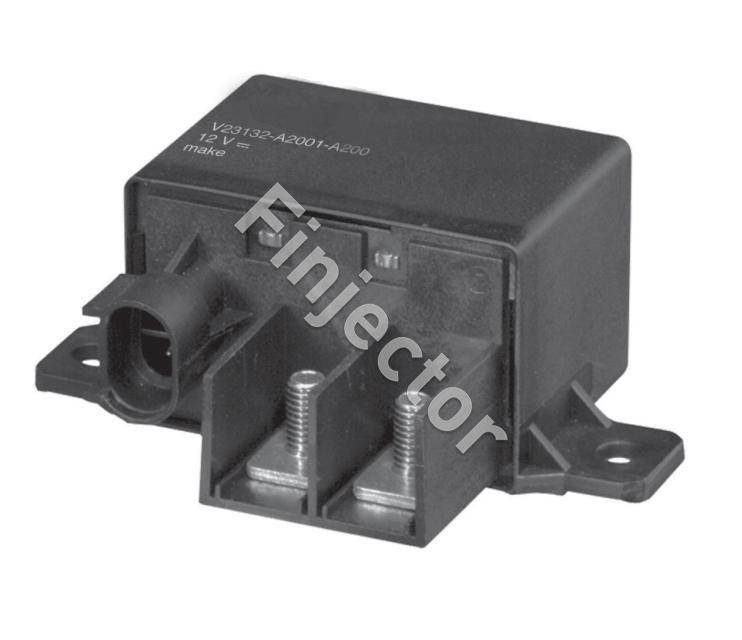

High current power relay 12V 130 A, screw terminals / Super Seal
Contact material: AgSnO²
Delivery time: Orders received before 10 AM (our local time) will mainly be shipped the same working day.
79.84 €
100.20 € VAT 25.5%
$ 81.44
- Limiting continuous current 130A at 85°C
- Current switching ability up to 300A
- Heat, moisture and vibration resistant
- Minimal contact resistance
Limiting continuous current:
23°C, load cable 16mm2 130A
85°C, load cable 16mm2 120A
125°C, load cable 16mm2 60A
23°C, load cable 25mm2 180A
85°C, load cable 25mm2 130A
125°C, load cable 25mm2 70A
Limiting making current, load current max. 3s on, make/break ratio 1:10 300A
Limiting breaking current 300A
Super Seal 2 pole connector set for wire size 0.5-1.5 mm²
SS-MALE-2-SET
1.51 €
1.89 € VAT 25.5%
$ 1.54
Connector set includes housing, needed wire seals and terminals.
Tubular Cable Lug, cable 16 mm2, hole 6 mm
In our own stock 167 pc(s)
Product number:PK16-6
1.15 €
1.44 € VAT 25.5%
$ 1.17
Cable shoes can be fastened to cables by crimping or soldering. Pre insulated ring terminals can be fastened by crimping.
Tubular Cable Lug, cable 25 mm2, hole 6 mm
In our own stock 43 pc(s)
Product number:PK25-6
1.46 €
1.83 € VAT 25.5%
$ 1.49
Cable shoes can be fastened to cables by crimping or soldering. Pre insulated ring terminals can be fastened by crimping.
Tubular Cable Lug, cable 10 mm2, hole 6 mm
In our own stock 65 pc(s)
Product number:PK10-6
0.81 €
1.02 € VAT 25.5%
$ 0.83
Cable shoes can be fastened to cables by crimping or soldering. Pre insulated ring terminals can be fastened by crimping.
Tubular Cable Lug, cable 2.5 mm2, hole 6 mm
In our own stock 13 pc(s)
Product number:PK2,5-6
0.29 €
0.37 € VAT 25.5%
$ 0.30
Cable shoes can be fastened to cables by crimping or soldering. Pre insulated ring terminals can be fastened by crimping.
Tubular Cable Lug, cable 6 mm2, hole 6 mm
In our own stock 88 pc(s)
Product number:PK6-6
0.65 €
0.82 € VAT 25.5%
$ 0.67
Cable shoes can be fastened to cables by crimping or soldering. Pre insulated ring terminals can be fastened by crimping.
