0281006123 | In our own stock 4 pc(s) Orders received before 10 AM (our local time) will mainly be shipped the same working day.

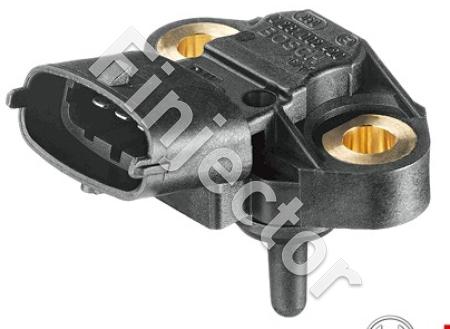

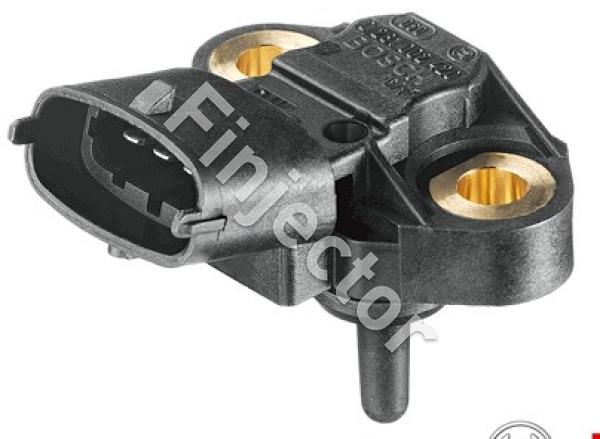

Pressure Sensor MAP 50-600 kPa with air temp (Bosch 0281006123)

Distance between mounting holes is : 36 mm
O-ring O.D is : 19 mm

Absolute pressure sensor 50-600 kPa with integrated air temperature sensor.
Supply voltage 5V. Bosch compact connector.
Pin 1= Signal ground, Pin 2 = NTC, Pin 3 =+5 V, Pin 4 =Output signal.

Absolute pressure sensor 50-600 kPa with integrated air temperature sensor. Supply voltage 5V. Bosch compact connector. Pin 1= Ground, Pin 2 = NTC, Pin 3 =+5 V, Pin 4 =Output signal. Vacuum connection: 18 mm O-ring. Delivery time: Orders received before 10 AM (our local time) will mainly be shipped the same working day.
  51.42 € 63.76 € VAT 24%
  $ 56.56


4 pole Bosch Compact connector set 0.5-1.5 mm2, JPT female pins

4 pole Bosch Compact connector set 0.5-1.5 mm2, JPT female pins
Product number:
1928403913-SET-1
  3.97 € 4.92 € VAT 24%
  $ 4.36

Connector set includes housing, wire seals and terminals.
