0281002244 | In our own stock 3 pc(s) Orders received before 10 AM (our local time) will mainly be shipped the same working day.

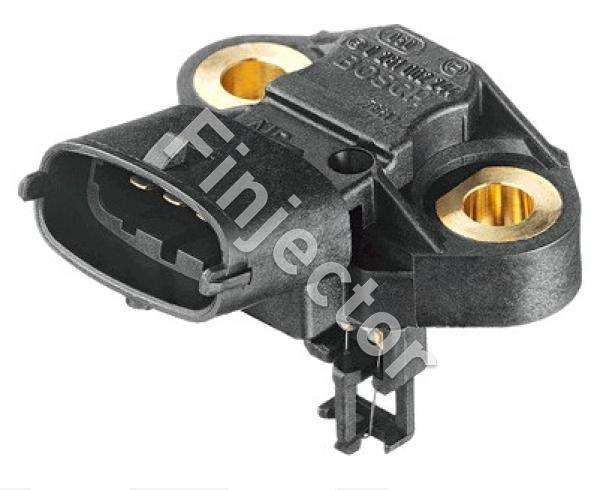

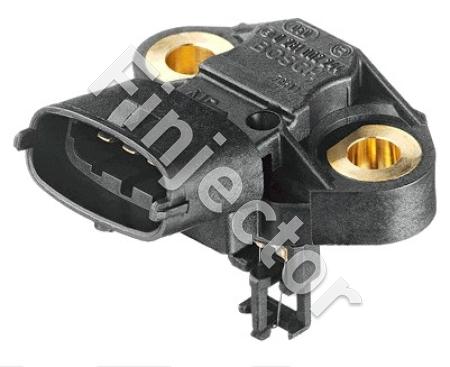

PRESSURE/TEMPERAT SENSOR 3.5 bar MAP

Distance between mounting holes is : 36 mm
O-ring O.D is : 19 mm

Absolute pressure sensor 50-350 kPa with integrated air temperature sensor.
Bosch compact connector.
Supply voltage 5V.
Pin =1 Ground, Pin 2 =NTC, Pin 3 =+5 V, Pin 4 =Output signal.

Absolute pressure sensor 50-350 kPa with integrated air temperature sensor. Supply voltage 5V. Bosch compact connector. Pin =1 Ground, Pin 2 =NTC, Pin 3 =+5 V, Pin 4 =Output signal. Vacuum connection: O-ring. Delivery time: Orders received before 10 AM (our local time) will mainly be shipped the same working day.
  92.76 € 115.02 € VAT 24%
  $ 102.03


4 pole Bosch Compact connector set 0.5-1.5 mm2, JPT female pins

4 pole Bosch Compact connector set 0.5-1.5 mm2, JPT female pins
Product number:
1928403913-SET-1
  3.97 € 4.92 € VAT 24%
  $ 4.36

Connector set includes housing, wire seals and terminals.
