Link ECU - XS Expansion Loom (XSL) - PlugIn ECUs (Link ECU 101-0106)

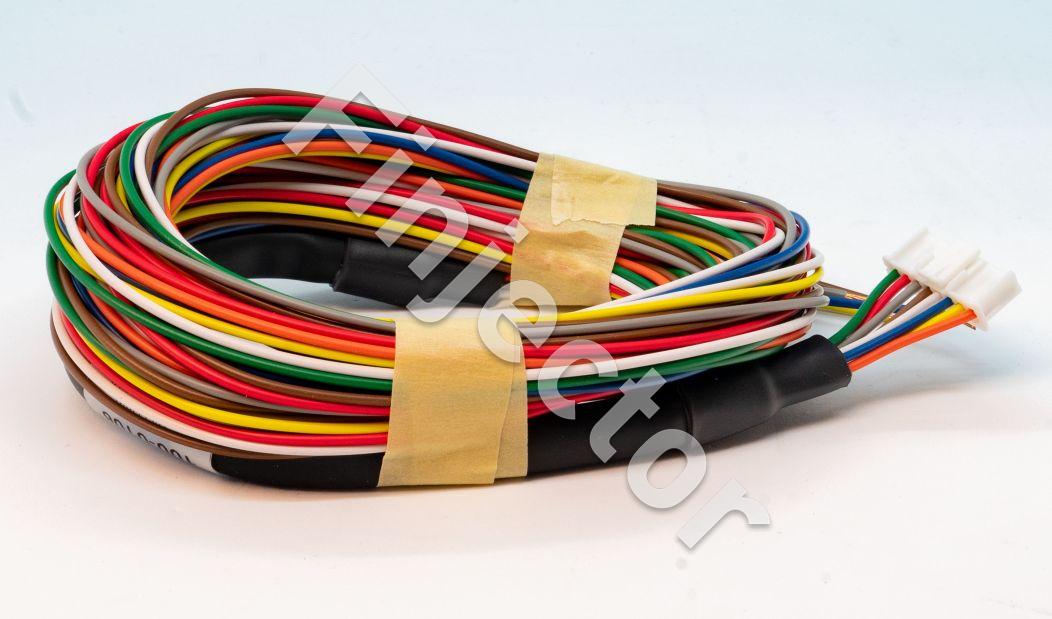

Want to add additional inputs/output to your Link Plugin ECU? Use the XS Loom. The Link XS Loom plugs into the expansion connector on all Link G4, G4+ and G4X plug-in ECUs. The number of extra inputs and outputs added by the XS Loom is dependent on the Plugin ECU. For specific details check the plug-in ECUs specifications.

Common applications include but are not limited to:

Boost adjustment knob or switch
Wide-band AFR/Lambda
Oil Pressure Sensor
Fuel Pressure Sensor
Inlet Air Temperature (IAT) sensor
Map switch (Different tunes available via toggle switch)
The XS Loom is 2.5m long and uses 20AWG wire.
