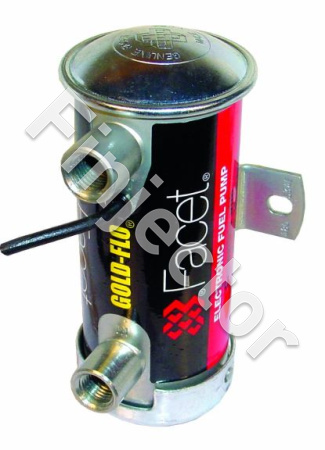

Facet 480532 Red Top Cylindrical Fuel Pump, 151 L/h, RTW506

Product number: RTW506

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Specification:- Competition
Pump:- 480532E
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 6.0-8.0
Flow:- US Gallons/Hr 40
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/4 npt
Operating Temperature:- -40º to +180° F (all Models)
Average Run Time or MTBF:- 6000 hrs
Length:-140mm
Diameter:- 54mm

Delivery time: Orders received before 10 AM (our local time) will mainly be shipped the same working day.

In our own stock 8 piece

156.13 € / 136.01 $ 124.41 € / 108.37 $ VAT 25.5% VAT 0%

Additional products

2240.0600

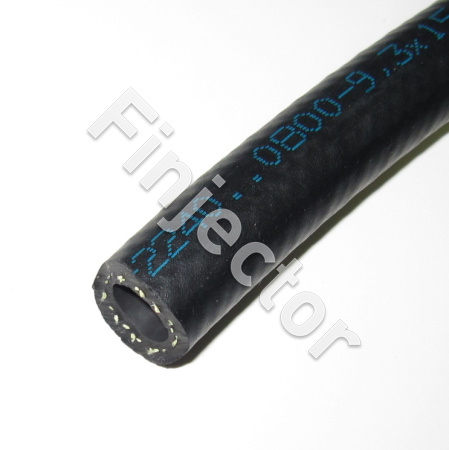

Fuel hose 7.3/13.5 mm, for Ethanol and Bio Diesel, FPM/ECO, 10 B

25.41 € / 22.13 $ 20.25 € / 17.64 $ VAT 25.5% VAT 0%

In our own stock 71 piece

2240.0800

Fuel hose 9.3/15.3 mm, for gasoline, E85 / RE85 and Bio Diesel, FPM/ECO, 10 Bar , max 125 C

25.98 € / 22.63 $ 20.70 € / 18.03 $ VAT 25.5% VAT 0%

In our own stock 69 piece

2192.0600

Fuel hose 7.5 mm/13.5 mm. Braided, Reinforced, 6 bar.

6.96 € / 6.06 $ 5.55 € / 4.83 $ VAT 25.5% VAT 0%

In our own stock 41 piece

2192.0800

Fuel hose 9.5 mm / 15.5 mm. Braided, reinforced, 6 bar

8.28 € / 7.21 $ 6.60 € / 5.75 $ VAT 25.5% VAT 0%

In our own stock 20 piece

FPA9021A

90° hose nipple for 8 mm hose, 1/4 NPT thread, brass

5.49 € / 4.78 $ 4.37 € / 3.81 $ VAT 25.5% VAT 0%

In our own stock 25 piece

FPA9021B

90° hose nipple for 10 mm hose, 1/4 NPT thread, brass

6.64 € / 5.78 $ 5.29 € / 4.61 $ VAT 25.5% VAT 0%

Not in stock

FPA904A

Straight hose nipple for 8 mm hose, 1/4 NPT thread, brass

4.59 € / 4.00 $ 3.66 € / 3.19 $ VAT 25.5% VAT 0%

In our own stock 18 piece

FPA904B

Straight hose nipple for 10 mm hose, 1/4 NPT thread, brass

4.90 € / 4.27 $ 3.90 € / 3.40 $ VAT 25.5% VAT 0%

In our own stock 3 piece

FPA905

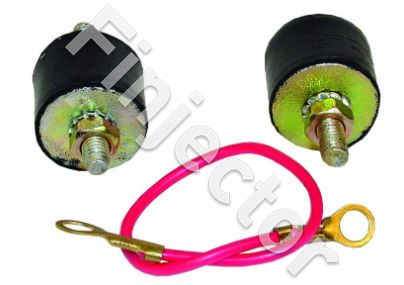

FACET Fuel Pump Rubber Mounting Kit with Earth Strap

6.57 € / 5.72 $ 5.24 € / 4.56 $ VAT 25.5% VAT 0%

In our own stock 4 piece

AD-ASA01

Thread adaptor 1/4 NPT -> JIC6 (AN6)

6.00 € / 5.23 $ 4.78 € / 4.16 $ VAT 25.5% VAT 0%

In our own stock 8 piece

400107466

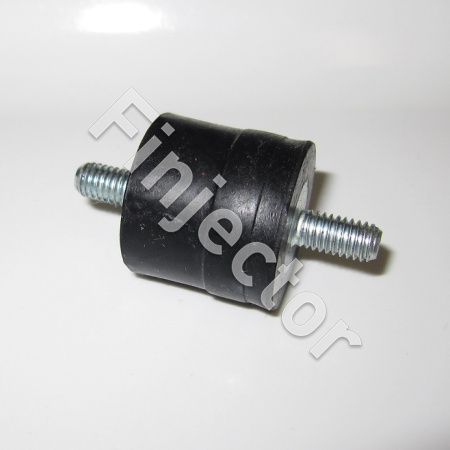

Kiinnityskumi, 2 kpl M6 ruuveja (MB A1039880111)
